Plant List

State-of-the-Art CNC Machining Capabilities

Delivering High-Precision, Multi-Process Manufacturing For Complex Parts.

At PCS, we utilise a versatile, industry-leading fleet of CNC machines to meet the exacting standards of our clients across the medical, aerospace, automotive, and electronics sectors. From high-volume sliding headstock lathes for small-diameter precision, to robust multi-tasking turning centres for medium-to-large billets, our facility is equipped to handle a diverse range of machining requirements. By integrating advanced turning, milling, and drilling operations, we maximise efficiency and deliver complex, high-accuracy parts in a single setup.

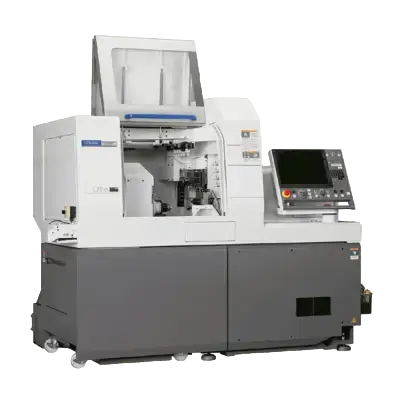

Citizen L20 CNC machine

Citizen L20

  • Bar capacityup to 20mm
  • Max machining length200mm
  • Spindle speedup to 10,000 rpm

The Citizen L20 is a sliding headstock CNC lathe designed for precision turning and mill-turn operations on small-diameter parts. It’s widely used in industries like medical, aerospace, automotive, and electronics for high-accuracy, high-volume production. The L20 has a bar capacity of up to 20mm in diameter and with a maximum machining length of 200mm. With a spindle speed that can reach 10,000 rpm, it allows for fast and precise turning on bars with a smaller diameter. Similar to the L32, it has built in driven tools which allows for milling, drilling and tapping to occur without having to change to alternative machines.

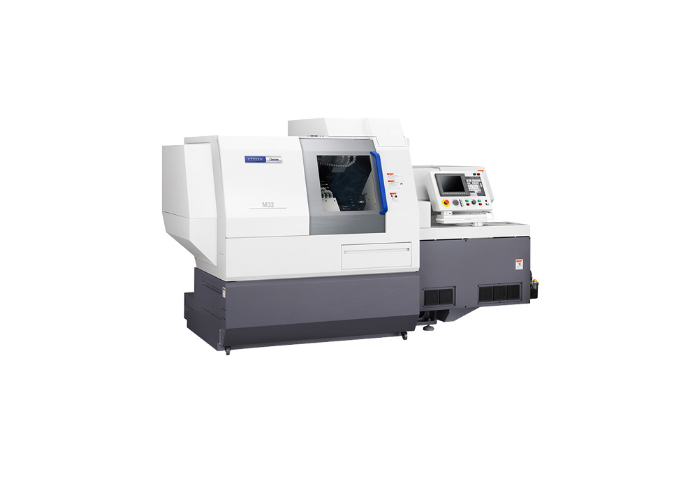

Citizen L32 CNC machine

Citizen L32

  • Diameter32mm (38mm on certain machines)
  • Max length320mm

The Citizen L32 is a sliding headstock CNC lathe, which is used to produce complex turned parts, similar to that of the L20. However, it is able to produce parts not only greater in diameter but also that in length. As a result, this machine would be perfect for parts that would be too long for the L20 as the L32 allows for parts upto 320mm long to be produced with a diameter of 32mm and with the capability on certain machines to increase this to 38mm. Whilst it has a lower top speed than that of the L20, it has more torque which is better suited to parts with a larger diameter.

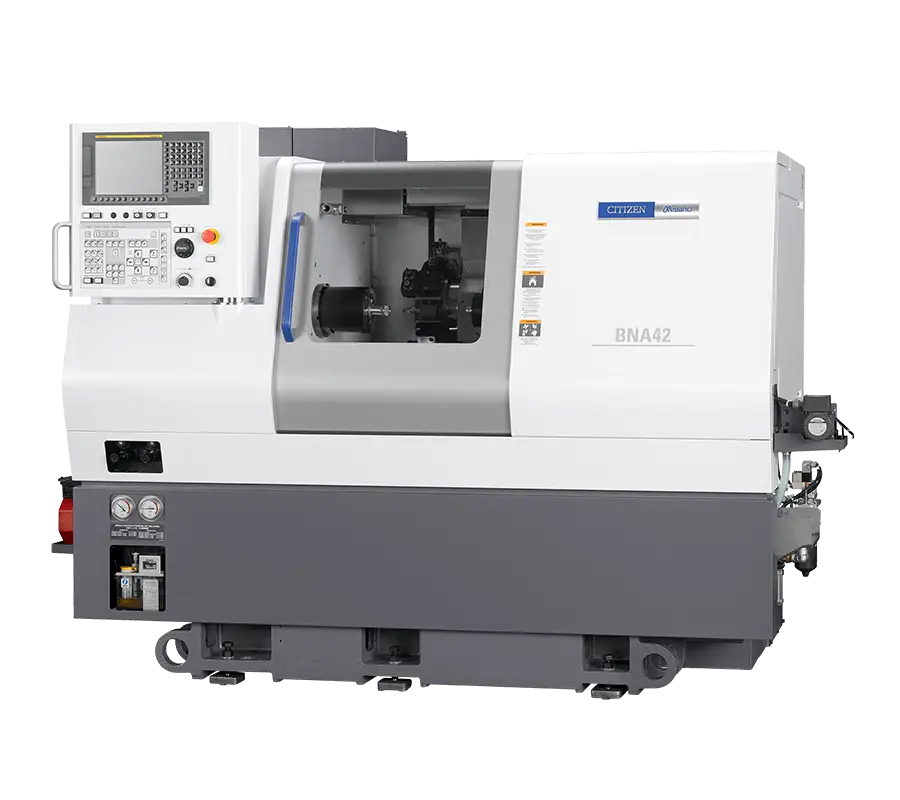

Citizen Miyano BNA-42DNHY3 CNC machine

Citizen Miyano BNA-42DNHY3

  • Diameter3mm to 42mm
  • Max length100mm

With the capability to carry out front & back simultaneous machining of components up to 100mm in length & 3mm up to 42mm in diameter. This machine provides versatility across a wide spectrum of machining requirements; whilst reducing our lead times, allowing us to react quickly to the needs of our customers

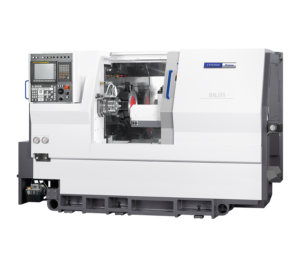

Citizen Miyano BNJ-51 CNC machine

Citizen Miyano BNJ-51

Citizen Miyano machine refers to a range of fixed-head CNC turning centres, which is contrast to that of the sliding headstock variations, L20 and L32. They’re designed for medium-to-large bar and billet machining with high productivity, rigidity, and multi-process capability.  Miyano machines excel in production turning of medium-to-large diameter parts that require multi-operation capabilities in a single setup — common in automotive, aerospace, hydraulics, medical, and precision subcontracting.

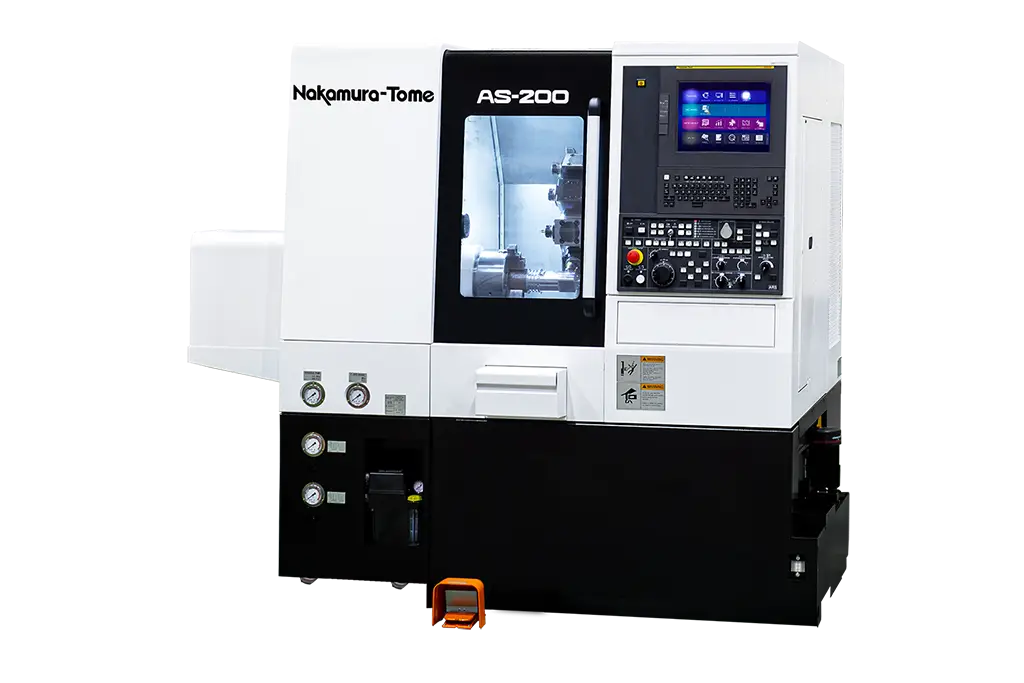

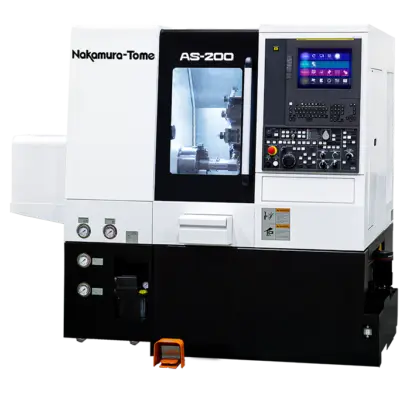

Nakamura-Tome AS-200 CNC machine

Nakamura AS200

  • Workpieceup to ~290mm diameter
  • Bar capacity65mm
  • Turret12-station
  • Turning length~300mm
  • Max spindle speed4500 rpm

The Nakamura AS-200 is a multitasking CNC turning centre — combining precision turning with milling and drilling functions in one compact machine. It’s designed for efficient production of complex parts where multiple operations can be done in a single setup. Turning Operations. Can handle workpieces up to ~290 mm diameter on a 12-station turret with a typical turning length of around 300mm. The Nakamura AS200 has a bar capacity of 65mm and uses a robust spindle with maximum speed of 4500 rpm and a strong drive power

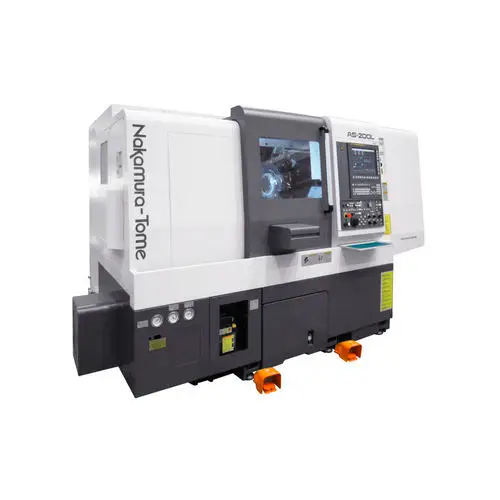

Nakamura-Tome AS-200L CNC machine

Nakamura AS200-L

  • Turning length~570mm

The AS-200L is an extended-length version of the standard AS-200. It’s a single-turret, Y-axis CNC turning centre with integrated milling capability, designed to combine turning and milling/drilling operations in one machine, helping reduce setups and improve productivity.

The AS-200L is a compact but powerful multitasking turning centre suited for medium-length precision parts. Its strengths include:

  • Longer turning capacity than the base model (~570 mm).
  • Integrated Y-axis and high-speed milling spindles for combined turn-mill operations.
  • Flexible tooling and high productivity in one setup.

This makes the AS-200L great for shops that want complex parts machined in one go — reducing fixture changes and secondary operations.

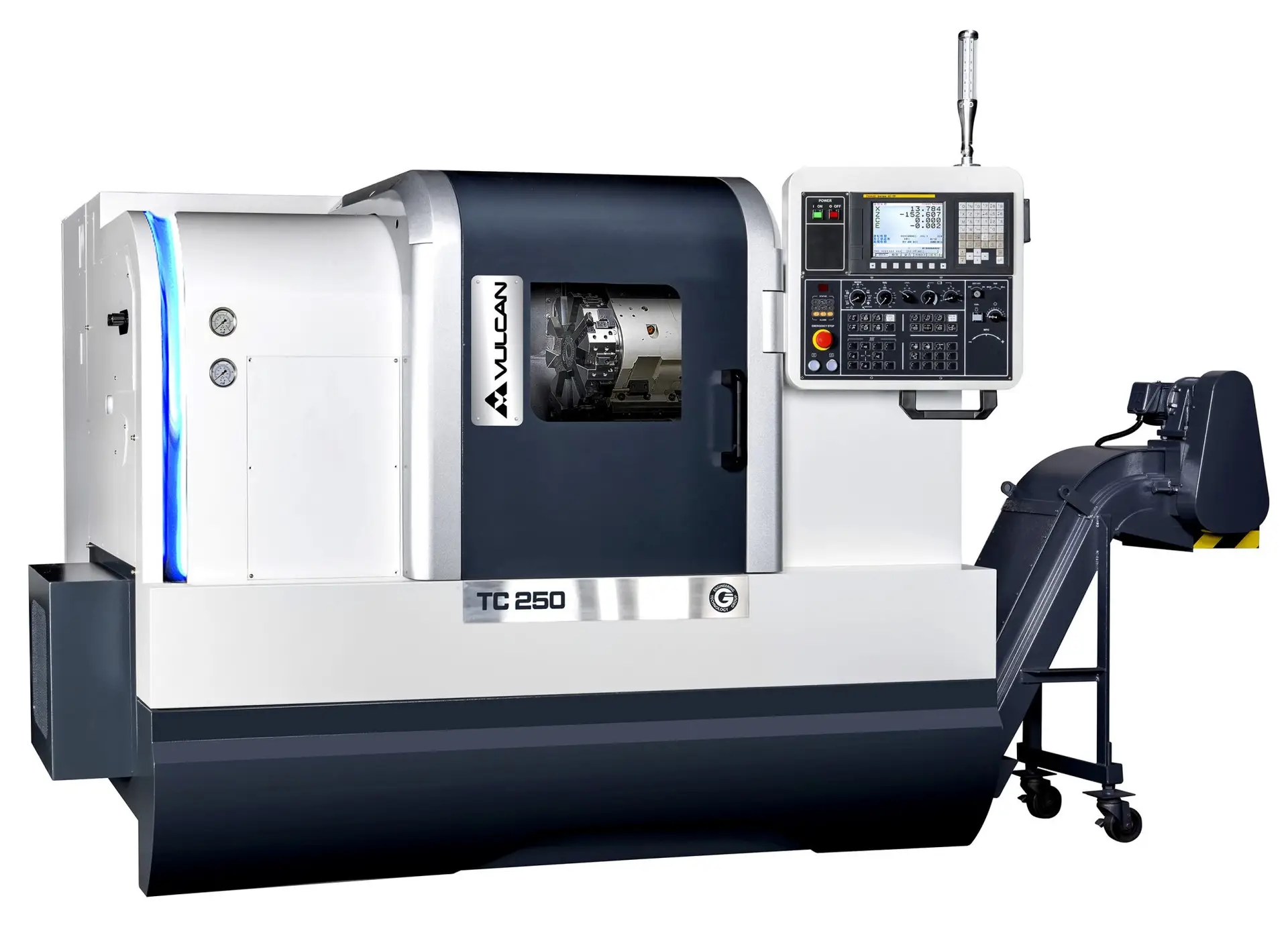

Vulcan TC250M CNC machine

Vulcan TC250M

The Vulcan TC250M is a CNC turning centre / lathe in the TC series, aimed at flexible and cost-effective production. It’s a single-spindle turning machine with live tooling added to the turret for enhanced machining capability. the Vulcan TC250M is a versatile CNC turning centre with live tooling that goes beyond simple turning. Its configuration lets you integrate multiple machining operations (turning, drilling, tapping, light milling) in one setup, improving efficiency and reducing handling on moderately sized workpieces.
